5" gauge "S" truck

My 5" gauge  "S" truck is made by welding or screwing together aluminium castings. The wheels and axles need machining. The axles run on ball races concealed behind the "W" iron. The drawings are included with the castings.

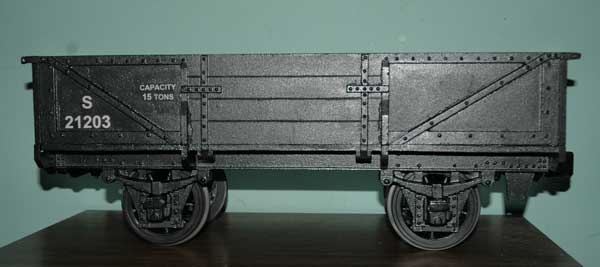

"5" S Truck side view

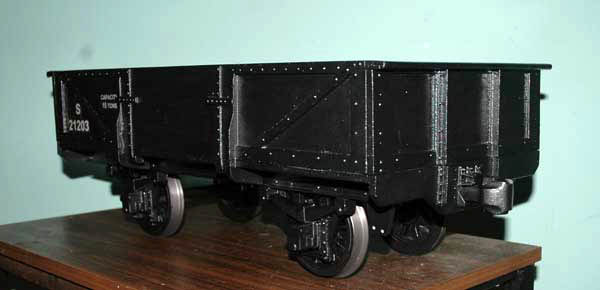

"5" S Truck front view

Prices for 5" gauge  " S " truck

2 Al sideframes $72.00
2 Al buffer beams $53.00
1 Al floor $70.00
2 Al box ends   $63.00
2 Al box sides  $63.00
4 Al axleboxs $21.00
2 Al dummy automatic couplers $11.00
4 CI wheels $36.00
4 Ball races $20.00

                                Effective  January 2015

5" and 7 1/4" gauge Passenger Carriage Kits

FO - Body laser cut parts available- contact for pricing

LFX - Under development

HCX - Under development

CUB Set - ( "L" cars - 6 car set) Under development
