Diesel Wheel Sets
5" Gauge
Ready to install
250 or 450 watt - 24 volt DC geared motor
Chain drive
Can be fitted with extra sprockets to drive more axles
Ball raced suspension bearings
Twin ball raced axlebox bearings
Steel wheels:
3.5" (89mm) dia for use in 5" bogies 3.75" (95mm) dia for use in most NSWGR diesels
Other diameters available on request
Parts and Price List for 5" gauge
| Axles (1 off) | $16.00 |
| Wheels (2 off) | $32.00 |
| Axleboxes (2 off) | $39.00 |
| Axlebox bearings (4 off) | $18.00 |
| Suspension bearing blocks (2 off) | $36.00 |
| Motor ounting plate (1 off) | $35.00 |
| Motor 250 watt (1 off) | $85.00 |
| Motor 350 watt (1 off) | $95.00 |
| Motor 450 watt (1 off) | $95.00 |
| Sprocket - motor (1 off) | $18.00 |
| Sprocket - axle (1 off) | $18.00 |
| Chain and joining link 3/8" pitch (1 off) | $10.00 |
| Bolts | $5.00 |
| Assembled diesel wheelset 450 watt (1 off) | $352.00 |

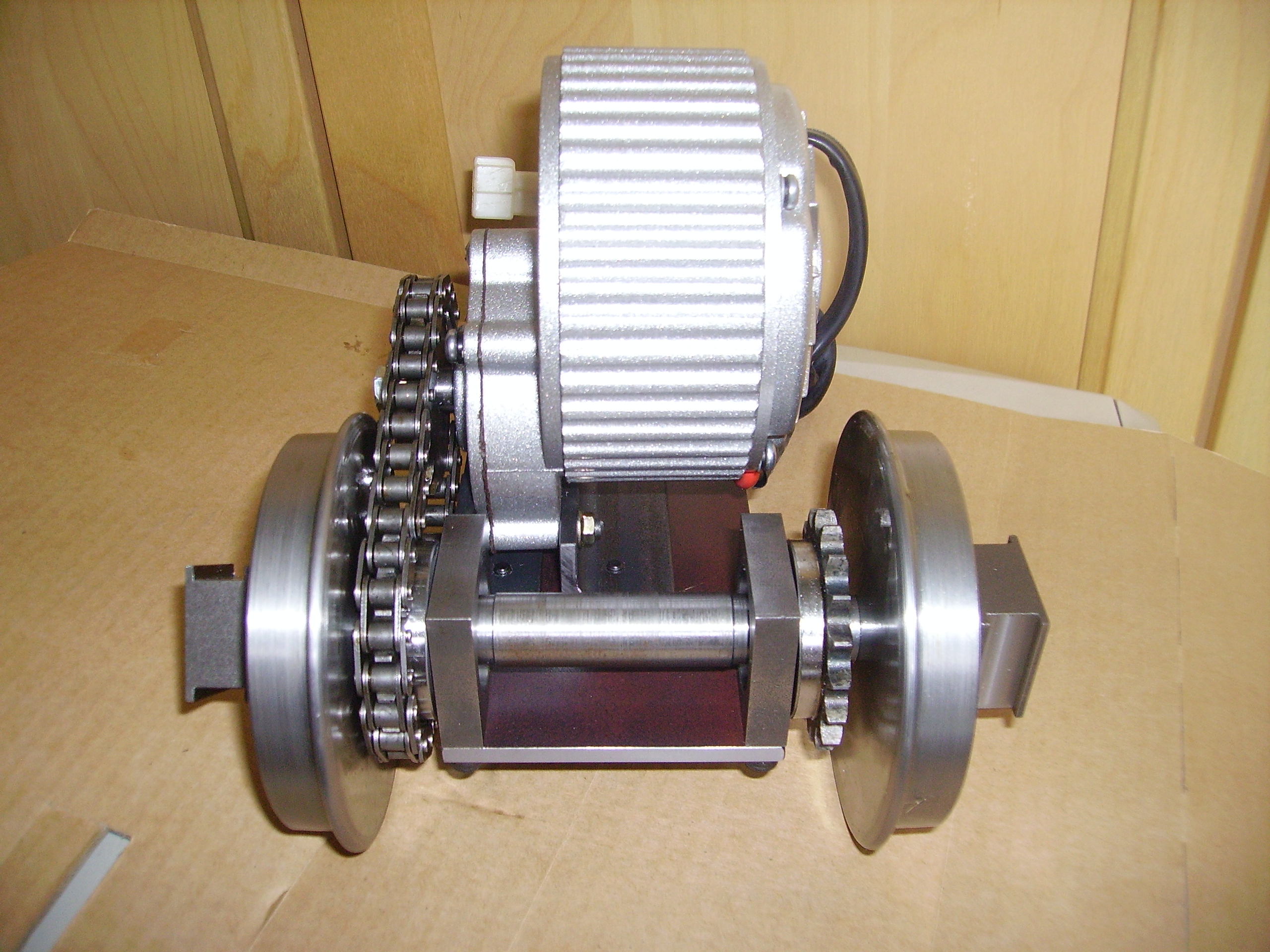

Diesel wheelset shown below

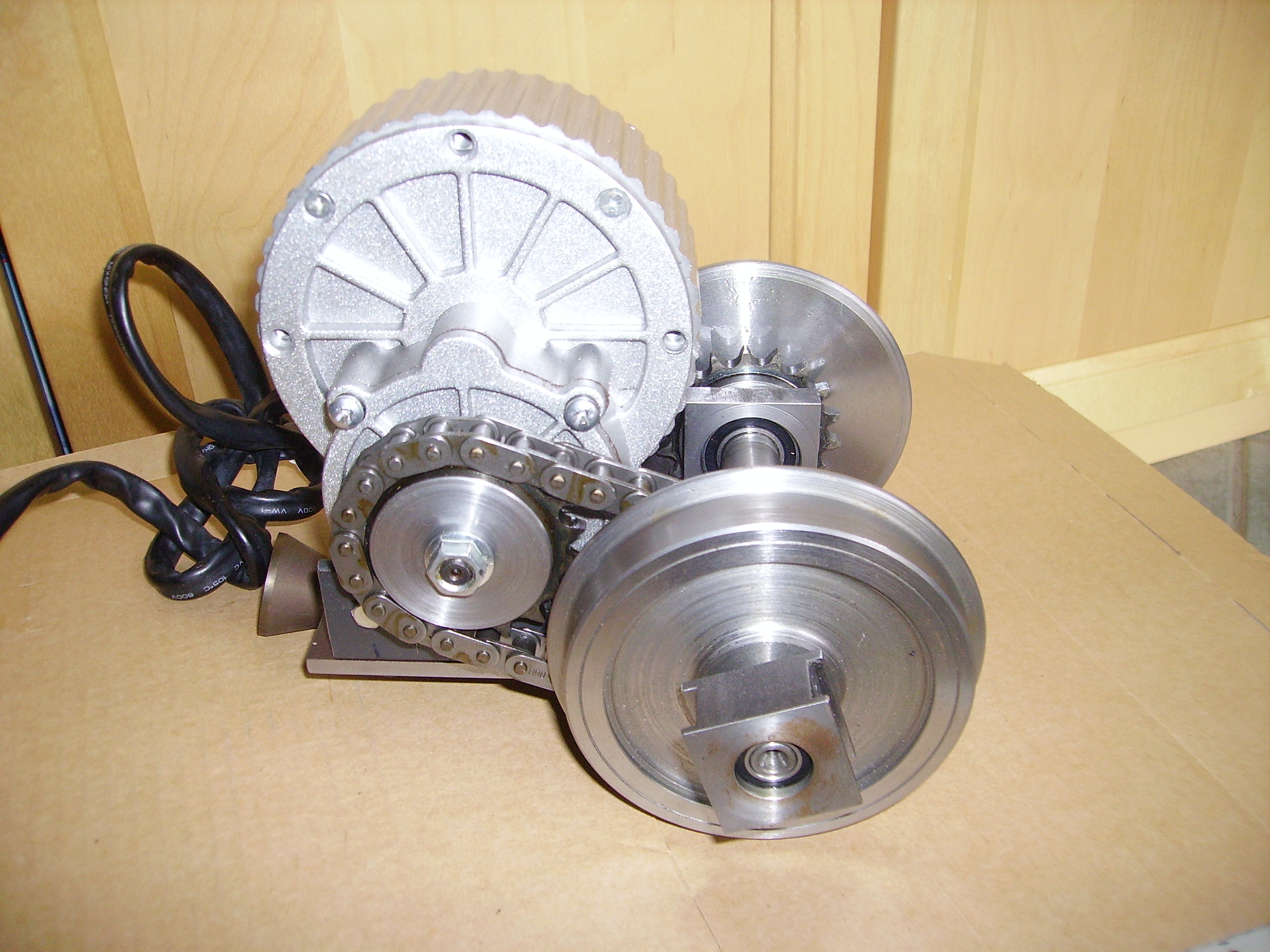

Diesel wheelset shown below

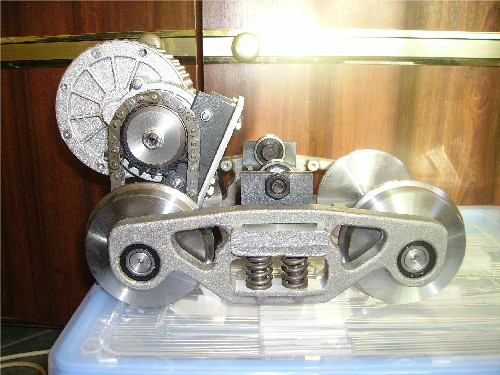

Diesel wheelset fitted to my 5" passenger bogie shown below.
Price of one diesel wheel set in one of my passenger bogies.
$649
Effective January 2015
