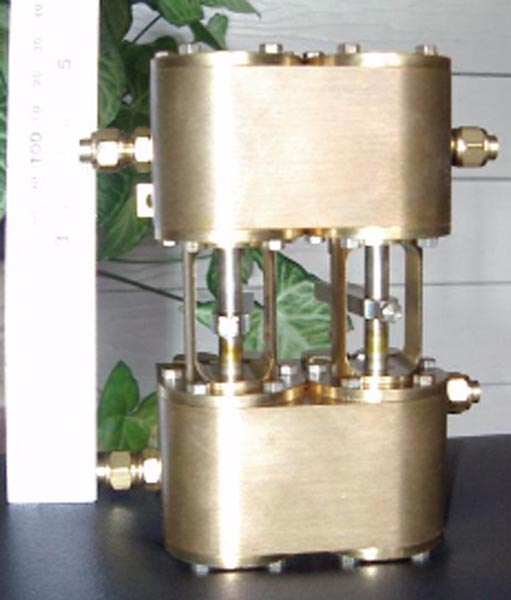

Two Cylinder Water Pump
1.5" scale
| Overall height | 5" (127mm) |
| Width | 3" (76mm) |
| Thickness | 2 7/16" (62mm) |
| Steam cylinder diameter | 1" (25.4mm) |
| Water cylinder bore | 3/4" (19mm) |
| Stroke | 0.975" (24.8mm) |
| Working pressure | 50 - 110 psi |
Complete with fittings for 1/4" diameter copper pipe
Working pressure range:
Fully operational
Self starting
Reliable
These pumps have been in production since 1980
Lubrication: 600 W steam cylinder oil
Displacement lubricator is not supplied with the pump but can be purchased separately.
*** Price $1382 Australian Dollars ***
Effective January 2015
