Single Cylinder 1.5" scale Pumps

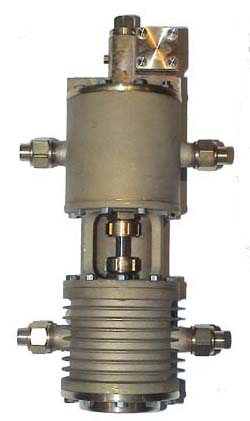

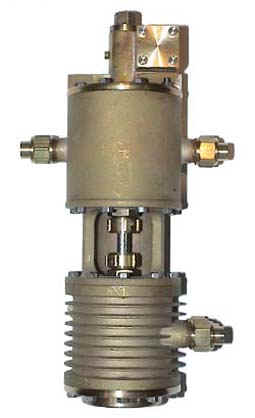

Model of a Westinghouse 10" (254mm) x 10.625" (270mm) air compressor.
| Overall height | 6" (152mm) |
| Maximum body diameter | 1.75"(44.45mm) |
| Steam cylinder diameter for water pump | 1.25"(32mm) |
| Steam cylinder diameter for air compressor | 0.875"(22.22mm) |
| Water and air cylinder diameter | 0.875"(22.22mm) |
| Stroke | 1.25" (31.75mm) |
| Working pressure range | 50 - 120 psi |
Available with air or water fittings as shown above.
Complete with fittings for 3/16" dia copper pipe.
Fully operational
Self starting
Reliable
Lubrication: 600 W steam cylinder oil or equivalent
Lubricator is not supplied with the pump but can be purchased separately.
These pumps have successfully been in production since 1980
*** Price for Water Pump $1274 AUD ***
*** Price for Air Compressor $1338 AUD ***
Postage within Australia: $40
Effective January 2015
