Single Cylinder 2.5" scale Pumps

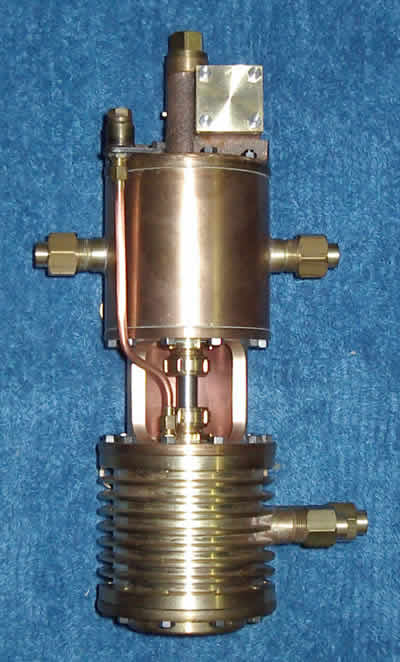

Model of a Westinghouse 10" x 10.625" air compressor.
| Overall height | 10.5" (266.7mm) |
| Maximum body diameter | 3.188" (81mm) |
| Steam cylinder diameter (for water pump) | 2" (50.8mm) |
| Steam cylinder diameter (for air compressor) | 1.875" (47.6mm) |
| Water cylinder diameter | 1.5" (38.1mm) |
| Air cylinder diameter | 1.875" (47.6mm) |
| Stroke | 2.25" (57.2) |
| Working pressure | 40 - 120psi |
Complete with fittings for 3/8" diameter copper pipe
Air compressor comes with air cylinder lubricator
Fully operational
Self starting
Reliable
Lubrication: 600W steam cylinder oil or equivalent
Lubricator is not supplied with the pump but can be purchased separately
*** Price for Water Pump $2134 AUD ***
*** Price for Air Compressor $2267 AUD ***
Postage within Australia $60 AUD
Effective January 2015
